GH-19 Logitech Guitar

$10.95$17.95

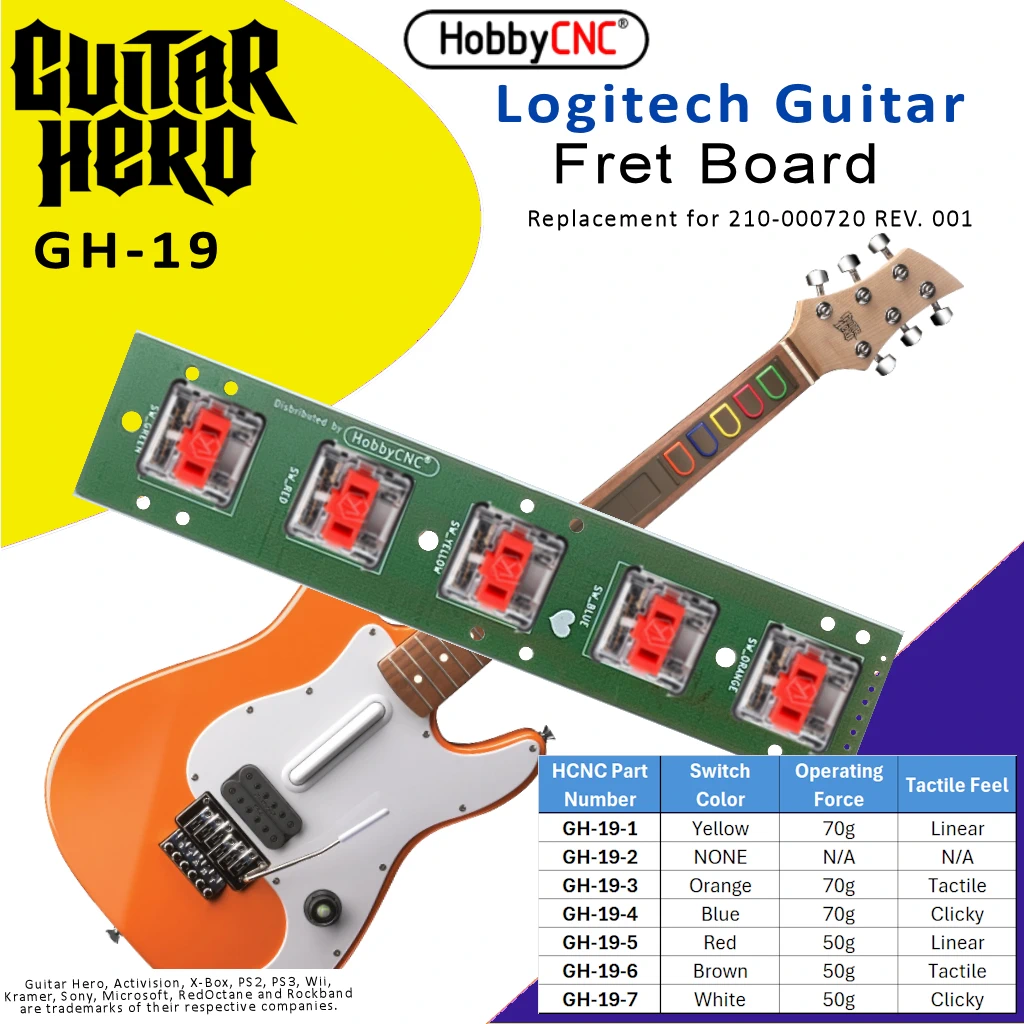

Replacement fret printed circuit board for the Logitech Guitar. Exact replacement for original board (210-000720 REV. 001). Uses the same wiring. Can be ordered as a board only or board with 5 switches installed.

NOTE: This product is built-to-order, so please allow an extra 2 days prior to shipping.

This is a kit. Basic soldering skills are required. Modification to the underside of the frets is required (see Modify Fret Buttons).

To verify compatibility with your guitar, reference our Guitar Hero Selection Guide.

You can find the GH-19 upgrade process here:  github.com/SunnySkye/Circuits

You can watch the GH-04 upgrade here: GH-04 Upgrade on YouTube

SKU: GH-19 Categories: ,

This board is designed in Australia by Skye Elizabeth Davis, who was kind enough to provide licensing for distribution by HobbyCNC.

See the COMPLETE UPGRADE INSTRUCTIONS provided by Skye via GitHub: github.com/SunnySkye/Circuits

This is a do-it-yourself upgrade from the flexible membrane switches to more reliable low-profile keyboard switches. Uses same mounting holes and ribbon cable as the original board. Basic soldering skills are required. May be ordered with or without switches.

To verify compatibility with your guitar, reference our Guitar Hero Selection Guide.

Watch sixstringcal do the GH-01 install/upgrade - and at the end of the video, watch him shred the upgrade: YouTube

Product is sent via USPS Ground Advantage, padded envelope. Shipping charges applied at checkout.

Additional information

Weight 0.125 lbs
Dimensions 5 × 1 × .4 in
Switch Option:

Board Only (no switches), Red – Linear | 50g, Brown – Tactile | 50g, White – Clicky | 50g, Dark Yellow – Linear | 70g, Burnt Orange – Tactile | 70g, Pale Blue – Clicky | 70g
