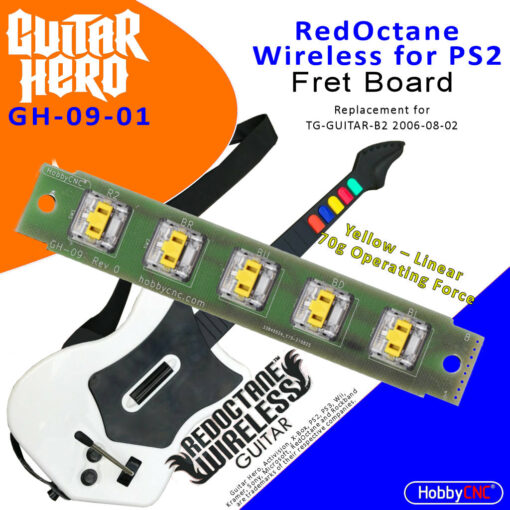

GH-09 Fret Board for RedOctane Wireless Guitar on PS2

$10.95$17.95

Replacement fret printed circuit board for the Red Octane Wireless Guitar on PS2. Exact replacement for original TG-GUITAR-B2 2006-08-02 board. Uses the same wiring. Can be ordered as a board only or board with 5 switches installed.

This is a kit. Basic soldering skills are required. Modification to the underside of the frets is required (see Modify Fret Buttons). A T-10 TORX driver is needed to open the guitar back/neck.

To verify compatibility with your guitar, reference our Guitar Hero Selection Guide.

You can find the GH-01 upgrade process here: Guitar Hero GH-01 Fret Switch Upgrade.

SKU: GH-09 Category:

Guitar Hero World Tour Guitar, mechanical switch fret upgradeThis is a do-it-yourself upgrade from the flexible membrane switches to more reliable low-profile keyboard switches. Uses same mounting holes and ribbon cable as the original board. Basic soldering skills are required. May be ordered with or without switches.

You will need a T-10 TORX driver to open the back of the guitar. See the Fret Board Upgrade Instructions.

To verify compatibility with your guitar, reference our Guitar Hero Selection Guide.

Watch sixstringcal do the GH-01 install/upgrade - and at the end of the video, watch him shred the upgrade: YouTube

Product is sent via USPS Ground Advantage, padded envelope. Shipping charges applied at checkout.

Additional information

Weight 0.125 lbs
Dimensions 5 × 1 × .4 in

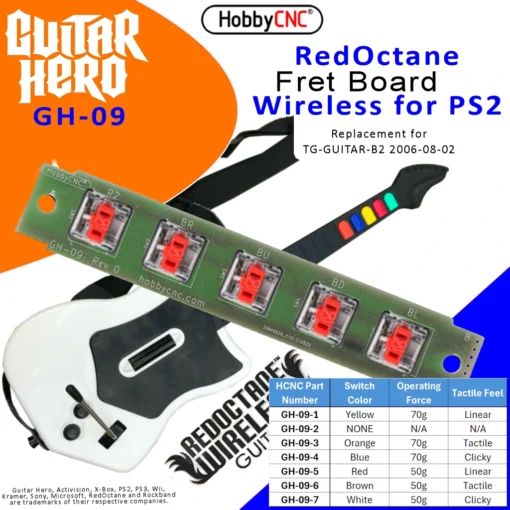

Switch Option:

Board Only (no switches), Red – Linear | 50g, Brown – Tactile | 50g, White – Clicky | 50g, Dark Yellow – Linear | 70g, Burnt Orange – Tactile | 70g, Pale Blue – Clicky | 70g
